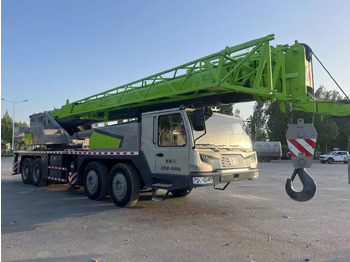

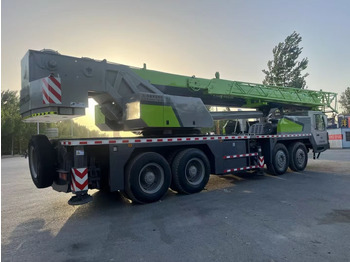

Leasing de ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane
Publicado: 4mes(es) 9d.
Publicado: 4mes(es) 9d.
Publicado: 4mes(es) 9d.
China, No. 3755 Jinshan Avenue, Jinshan District, Shanghai, China Contact us
Contact Person:Jenny
Whats App / We chat: +86 15202117835
Mobile: +86 15202117835
Email: abc@kyused.com
Details
Place of Origin:China
Operating Weight:70ton
Core Components:Pump, Gearbox, Engine
Packing & Delivery
Container,bulk,and roro are all available ! which ever is convient for you!
Technical parameters of Zoomlion ZTC700V552 truck crane
Large fixed total lifting capacity (kg) 70000
Basic arm * * Large lifting torque (kN. m) 2646
Long main arm * * large lifting torque (kN. m) 1288
Basic arm * * Large lifting height (m) 13.4
Main arm * * Large lifting height (m) 47.7
Auxiliary arm * * Large lifting height (m) 63.8
Single rope * * high speed (main winch) (m/min) 125
Single rope * * high speed (secondary winch) (m/min) 110
Crane arm lifting time (s) 55
Crane arm extension time (s) 120
Rotation speed (r/min) 0~1.7
High driving speed (km/h) 85
Large climbing slope (%) 46
Small turning diameter (m) ≤ 24
**Small ground clearance (mm) 305
Fuel consumption per 100 kilometers (L) 45
Driving state self weight (total mass) (kg) 46000
Vehicle curb weight (kg) 45805
Front axle load (kg) 20000
Rear axle load (kg) 26000
Dimensions (length x width x height) (mm) 14500 x 2800 x 3850
Longitudinal distance of legs (m) 6.05
Lateral distance of legs (m) Full extension 7.8
Tail turning radius (mm) 4200
Main arm length (m) 12.1-47.0
Main arm elevation angle (°) -2 to 80
Vice arm length (m) 9.5, 16.0
Installation angle of auxiliary arm (°) 0, 15, 30
Contact us
Contact Person:Jenny
Whats App / We chat: +86 15202117835
Mobile: +86 15202117835
Email: abc@kyused.com
Details
Place of Origin:China
Operating Weight:70ton
Core Components:Pump, Gearbox, Engine
Packing & Delivery
Container,bulk,and roro are all available ! which ever is convient for you!
Company information
SHANGHAI KAIYI TRADING CO.,LTD a verified competitive firm,is professional in international sales of the used construction machinery and equipment, long-term supply various of EXCAVATOR, CRANE, WHEEL LOADER, BULLDOZER, BACKHOE LOADERS, ROAD ROLLERS and etc. Brands like: KOMATSU, HITATCHI, CAT, SUMITOMO, KATO, KOBELCO and so on.
Regularly maintained and serviced
Excellent Working Condition
